How To Read A Weather Map

Reading A Weather Map

Almost all weather forecasts are accompanied by a map covered with all kinds of symbols, lines, and colors. The meteorologist will enthusiastically point to different areas on the map to explain why the weather will behave in the way it is forecasted.

How many of you have any idea what any of those lines, symbols, and colors mean? And how does the weather map help you get a better understanding of the weather forecast?

Weather Forecast Symbols

In a previous article, we covered all the symbols and accompanying information to help you fully understand what the prominent forecasting symbols mean. (You can read the in-depth article here).

To complete the picture, however, I want to help you get a better understanding of the weather maps used in forecasts as well. By understanding a weather map, you will get a much better idea of what to expect and why.

This is also meant to help those of you owning or planning on buying a home weather station in the future to better understand a weather map to use your device more effectively.

Understanding how to use a weather map effectively will assist you in making better sense of your weather station's readings and how they correlate with indicators on the map.

Before we start examining the different elements that make up a weather chart in detail, we need to clarify what a weather map is.

What Is A Weather Map?

Weather Map

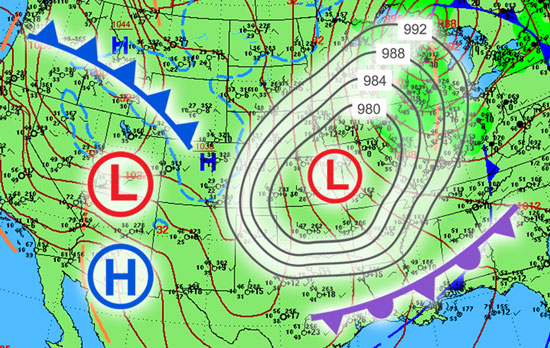

A weather map consists of a collection of symbols, lines, and icons that are overlaid on top of a map of a specific region. The purpose of a weather map is to show the current atmospheric conditions and weather systems present in this region, helping to determine how future weather will behave.

In recent years, advances in animation and display technology have enabled weather forecasters to use animations and display technology to not only display current atmospheric conditions but also project how these conditions will evolve into anticipated future weather events (forecasts).

It is important to understand the difference between a chart showing current conditions, and the modern graphical equivalent of a forecast showing an impressive and realistic animated prediction of how the weather might react in the future.

The former is an accurate portrayal of current conditions, while the latter is a  part of the prediction/forecast and should not be taken as fact.

Weather Map Symbols And Elements

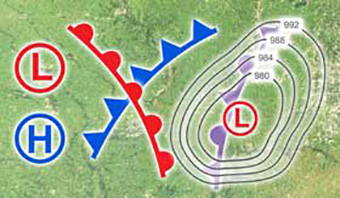

The various symbols, icons, and elements on a weather chart represent some form of weather condition or event. Knowing what each of these elements symbolizes, will help you to understand the different kinds of atmospheric condition that are present on the map.

weather map symbols

Knowing what each element on a map means, will help you to better read and understand the weather map, as well as better follow the actual forecast. (You may even draw your own conclusions as to what to expect, based on your personal experience and level of expertise).

Each element will be described and explained, as well as what they represent. Where possible, I will provide a link to a separate article which offers detailed information about the condition or event represented by the element or symbol. (Should you like to learn more about the weather event/condition and its implications).

The best way to proceed is to start with the most commonly used elements and move to the lesser known ones in the latter part of the section.

On almost any weather map, the majority of weather systems are formed around two areas:

Low Pressure System

Low-Pressure System

A low-pressure system is an area where the air (barometric) pressure is significantly lower than that of the surrounding air. As air always flows from an area of high to low pressure, winds are drawn towards this system.

In the Northern Hemisphere air circulates counterclockwise around a low-pressure system, and in the Southern Hemisphere, it flows clockwise around them. You can find out more about the development and characteristics of a low pressure system in this article.

A low-pressure system is the source of a variety of weather systems forming around it. This can vary from fold fronts to more severe weather systems.

Some strong low-pressure systems in the sub-tropics can lead to tropical depressions which, in turn, can lead to much stronger storm systems. You can read exactly how these storms are formed in this article.

High Pressure System

High-Pressure System

A high-pressure system is an area where the air (barometric) pressure is higher than that of the surrounding air. In this case, air usually flows away from the center of this system for the same reason it flows towards a low-pressure system.

You can find out more about the development and characteristics of a high-pressure system in this article.

Unlike a low-pressure system, it does not always produce severe weather conditions and is generally associated with much more pleasant weather conditions.

This does not mean that a high-pressure system cannot produce significant weather systems. Usually, the weather produced is not as violent and severe as those generated by a low-pressure system.

You can find out more about the type of weather associated with high-pressure systems in this article. (Also learn why the agricultural sector normally welcomes the weather associated with a high-pressure system.)

A variety of tentacle-like arms extend from these two systems and interact in different ways with each other. These "arms" usually symbolizes a certain type of front, each one with its own characteristics and resulting weather system.

Each type of front has its unique symbol representing it on a weather map. The most important ones are:

Cold Front

Cold Front

A cold font normally develops around a low-pressure system when the leading edge of a cold moving mass of air meets a body of warmer air. The boundary formed between these two air masses is called a cold front.

A cold front is typically associated with more severe weather conditions, including wind, rain, clouds and potentially thunderstorms. The severity of the weather depends on the strength of the low-pressure system and the conditions where the two air masses meet.

You can find more information about the development and characteristics of a cold front in this article.

Warm Front

Warm Front

A warm front usually develops around a high-pressure system when a moving mass of warm air encounters a colder and denser body of air. The boundary where these two air masses meet is called a warm front.

A warm front is normally associated with more moderate weather, producing light rains for a sustained period of time.

You can find more information about the development and characteristics of a warm front in this article.

Stationary Front

Stationary Front

Like a cold and warm front, a stationary front also occurs when a body of warm meets a body of cold air. In this case, neither of the air masses is powerful enough to dominate and move the other one out of the way. As a result, the front stays in one place and is called a stationary front.

Weather normally associated with these conditions, usually consists of long periods of consistent rain that stays in one location.

Occluded Front

Occluded Front

A cold front naturally moves faster than a warm front. On the odd occasion, a cold front can catch up with a warm front. When this happens, an occluded front is formed. (It is typically indicated by a purple line with the half-circles and triangles.)

A wide variety of weather conditions can form when an occluded front is formed, but it is usually associated with dry air.

A combination of two or more fronts, intertwined with each other around high and low-pressure systems usually dominate a weather map.

They are not the only elements that can be found on a weather map, however...

Lines On A Weather Map


isobars

Isobars

Very often you will see circular or oval shaped lines starting outside a high or low-pressure system. They are followed up by a number of similar lines, growing larger and changing in shape as new ones are added.

These lines are called isobars. Each line represents an area of equal air (atmospheric) pressure, as it would occur at sea level. (Each line is measured at or brought down to sea level to remove any influence height or other variables may have on barometric pressure.)

Isobars play an important role in indicating how pressure in the atmosphere changes as it moves away from the center of the pressure system (high or low).

For example, it shows you in which direction areas of the same pressure is spreading in relation to the center of the pressure system. Larger open areas usually indicate these areas with the lines spaced far apart.

The spacing between the lines also clearly shows you how steep the gradient, or how quick the change in pressure is. The closer the lines are spaced together, the stronger the wind speed in the area will be.

(Remember, air flows from an area of high pressure to an area of low pressure. The closer the lines are spaced together, the steeper the gradient and the stronger the wind speed.)

Conclusion

As you just found out, once you know the basic symbols and elements used on a weather map, it looks much less confusing and intimidating.

It will also help you to better understand what the meteorologist means when pointing to different areas on the map to explain how the weather will behave in the future.

Some weather forecasting symbols indicating future weather conditions are sometimes also displayed on the weather map itself. Fortunately, we already covered each of these symbols and what they mean, which you can find in this article

Feel free to leave me any comments, questions or suggestions, and I will get back to you as soon as possible.

Remember to join my  Mailing List  to be informed whenever a new article is released, and share new developments and helpful hints & tips.

Until next time, keep your eye on the weather!
